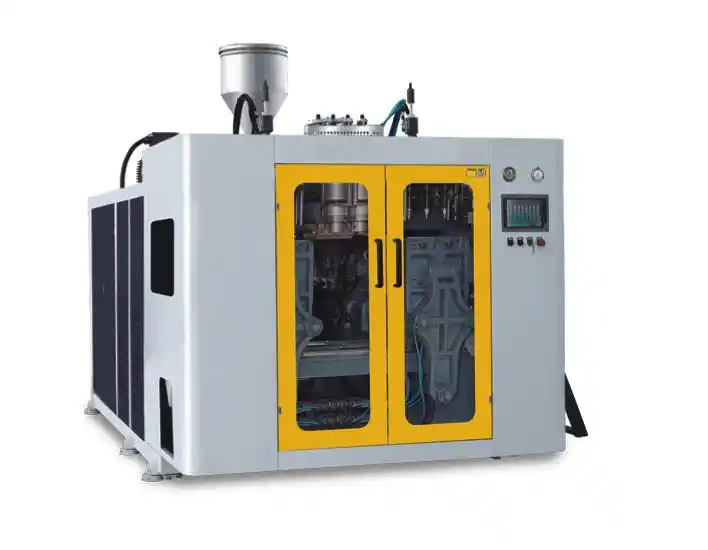

PE Blow Molding Machines Miami
HDPE Blow Molding Machines
AMK Plastics is here to fulfill all of your plastic manufacturing needs, from the smallest screw to complete turnkey projects.
AMK Plastics is here to fulfill all of your plastic manufacturing needs, from the smallest screw to complete turnkey projects.
Machine parameters:
Model: HDPE Blow Molding Machines
Model SYS-HB55-T2
| Parameter | Value | UOM |
|---|---|---|
| Screw Diameter | 55 | mm |
| Mold Center Distance | ||
| Drive Motor Capacity | 15 | kw |
| Power of Pump | 7.5 | kw |
| Useful Area of Mold Plate | 320 x 345 | mm |
| Mold Stroke | 150-350 | mm |
| Power of Heating | 7.2 | kw |
| Output (500mL) | 160-200 | pcs/hr. |
| Extrusion Capacity | 54 | kg. |
| Dry Cycle | 10 | s |
| Number of Heaters | 6 | pcs |
Machine parameters:
Model: HDPE Blow Molding Machines
Model SYS-HB55-T2-DH
| Parameter | Value | UOM |
|---|---|---|
| Screw Diameter | 55 | mm |
| Mold Center Distance | 75 | mm |
| Drive Motor Capacity | 15 | kw |
| Power of Pump | 7.5 | kw |
| Useful Area of Mold Plate | 320 x 345 | mm |
| Mold Stroke | 150-350 | mm |
| Power of Heating | 7.2 | kw |
| Output (500mL) | 1000-1200 | pcs/hr. |
| Extrusion Capacity | 54 | kg. |
| Dry Cycle | 10 | s |
| Number of Heaters | 6 | pcs |
| N° | Part Name | Brand/Material |
|---|---|---|
| 1 | PLC Controller | SIEMENS |
| 2 | Display | DELTA / SIEMENS |
| 3 | Parison Controller | MOOG |
| 4 | Frequency Converter | DELTA/SCHNEIDER |
| 5 | Temperature Control Module | SIEMENS |
| 6 | Air Switch | SCHNEIDER |
| 7 | AC Contactor | SCHNEIDER |
| 8 | Limit Switch | SCHNEIDER / OMRON |
| 9 | Proximity Switch | SCHNEIDER / OMRON |
| 10 | Breaker | SCHNEIDER |
| 11 | Cylinder | FESTO / AOSI |
| 12 | Pneumatic Valve | FESTO / SMC |
| 13 | Seals | NOK |
| 14 | Hydraulic Pump | YUKEN / VICKERS |
| 15 | Lifting Motor for Machine Platform | CALZONI / BIGNOZZI / SETM |
| 16 | Hydraulic Valve | YUKEN / VICKERS / HUADE |
| 17 | Transducer | GEFRAN |
| 18 | High-pressure Rubber Hose | AEROQUIP/MANULI |
| 19 | Pressure Gauge | DMASS |
| 20 | Lubrication Pump | SANLANG |
| 21 | Cooler | MAXMA |
| 22 | Gear Box | KEWEI |
| 23 | Motor | JINLONG |
| 24 | Linear Guide | SHANGYIN /ABB |
| 25 | Die Head Material | 38CrMoAL |
