PET Blow Molding Machines Miami, Florida
PET Blow Molding Machines

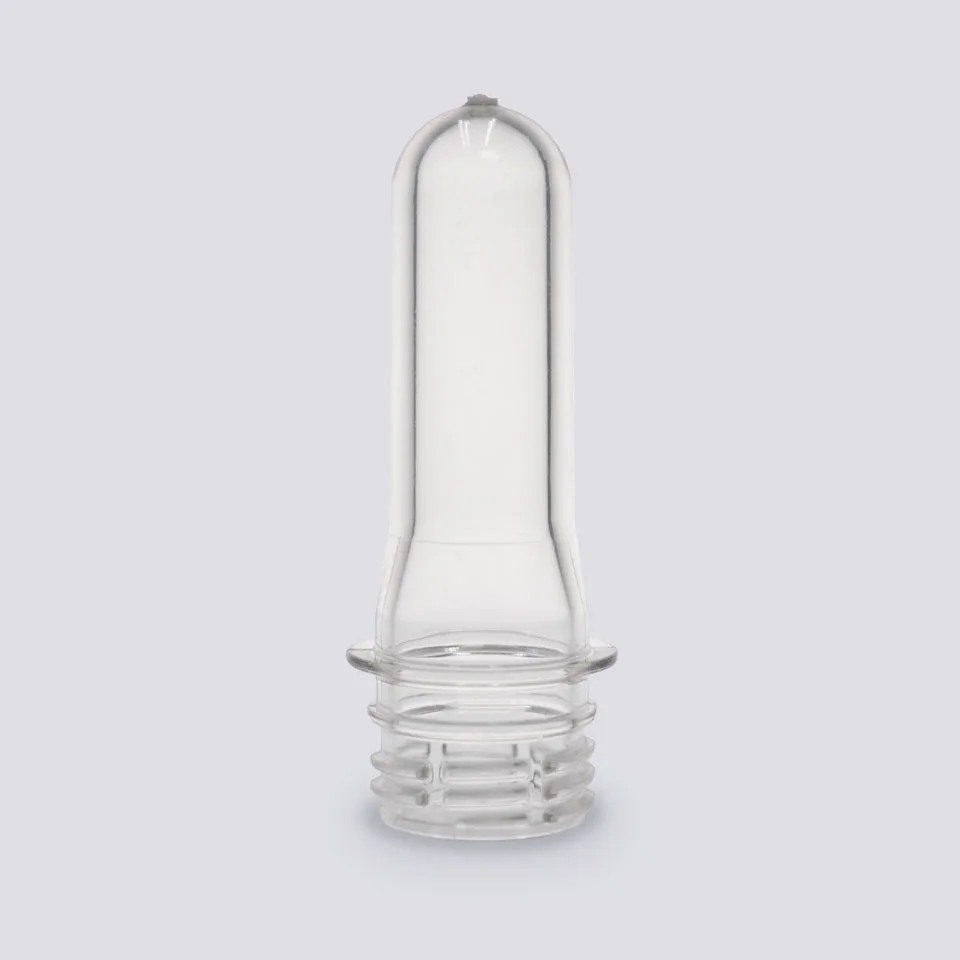

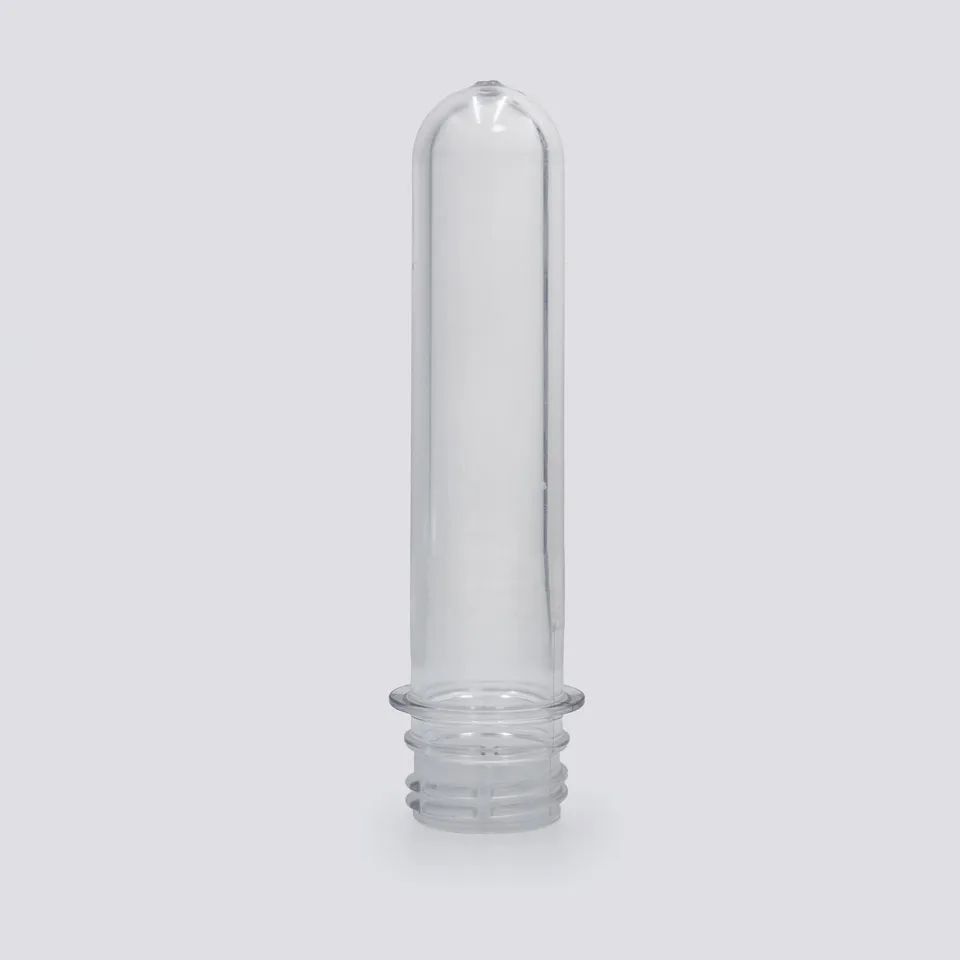

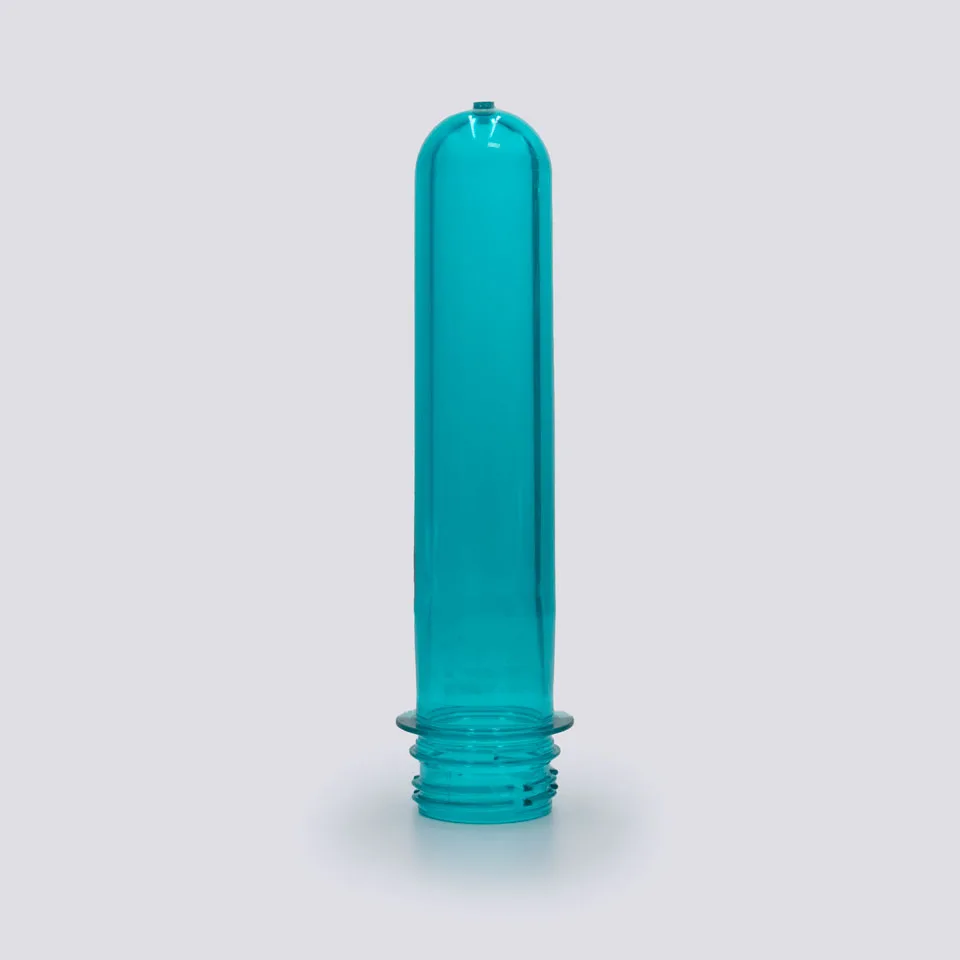

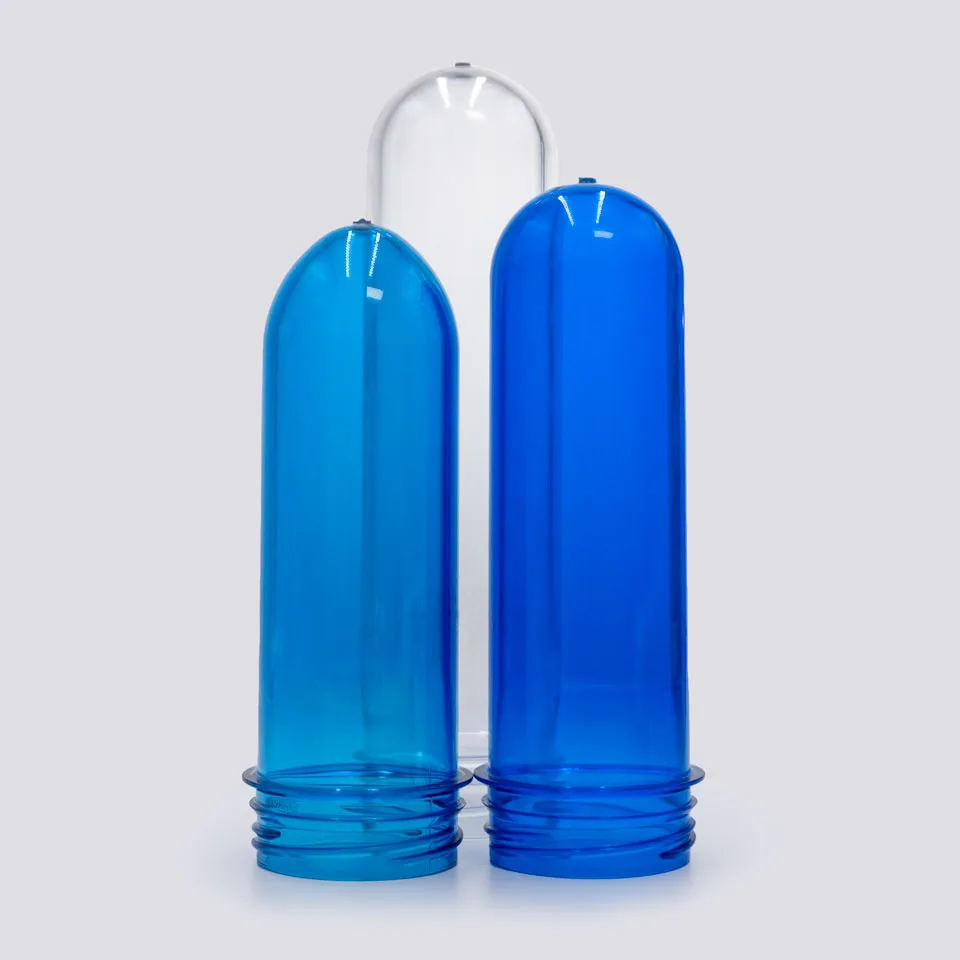

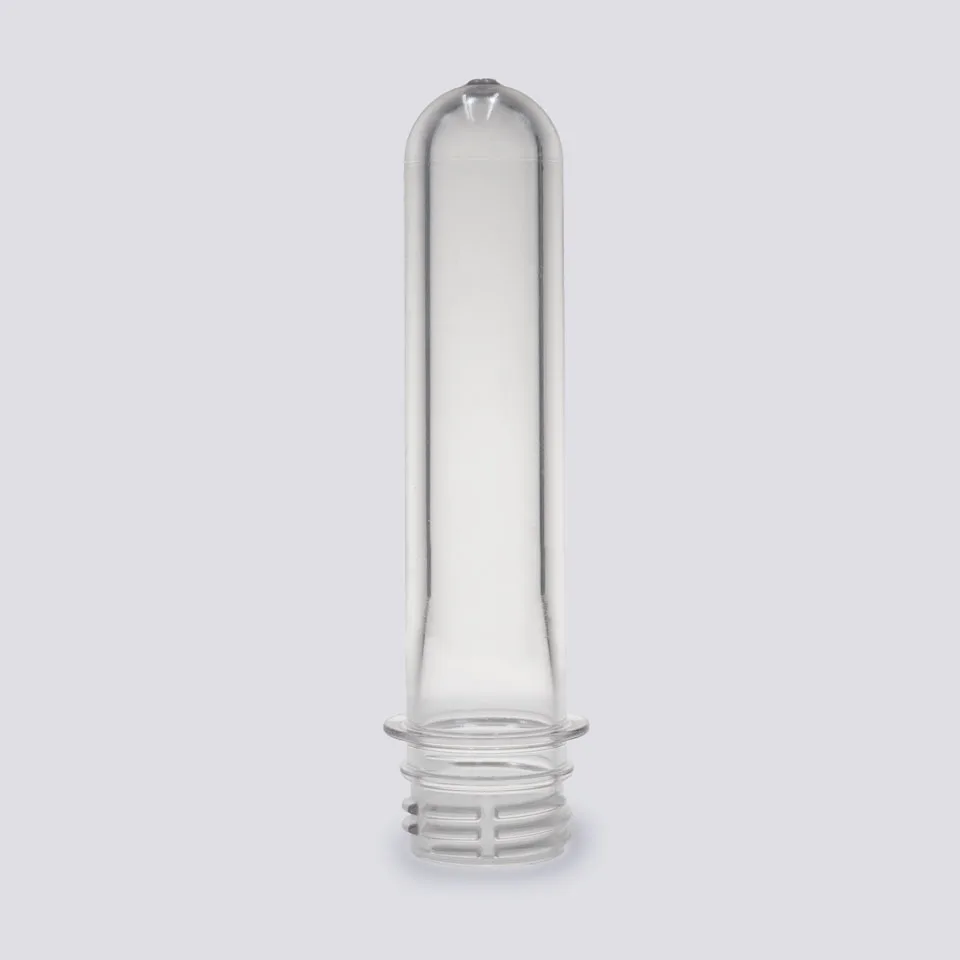

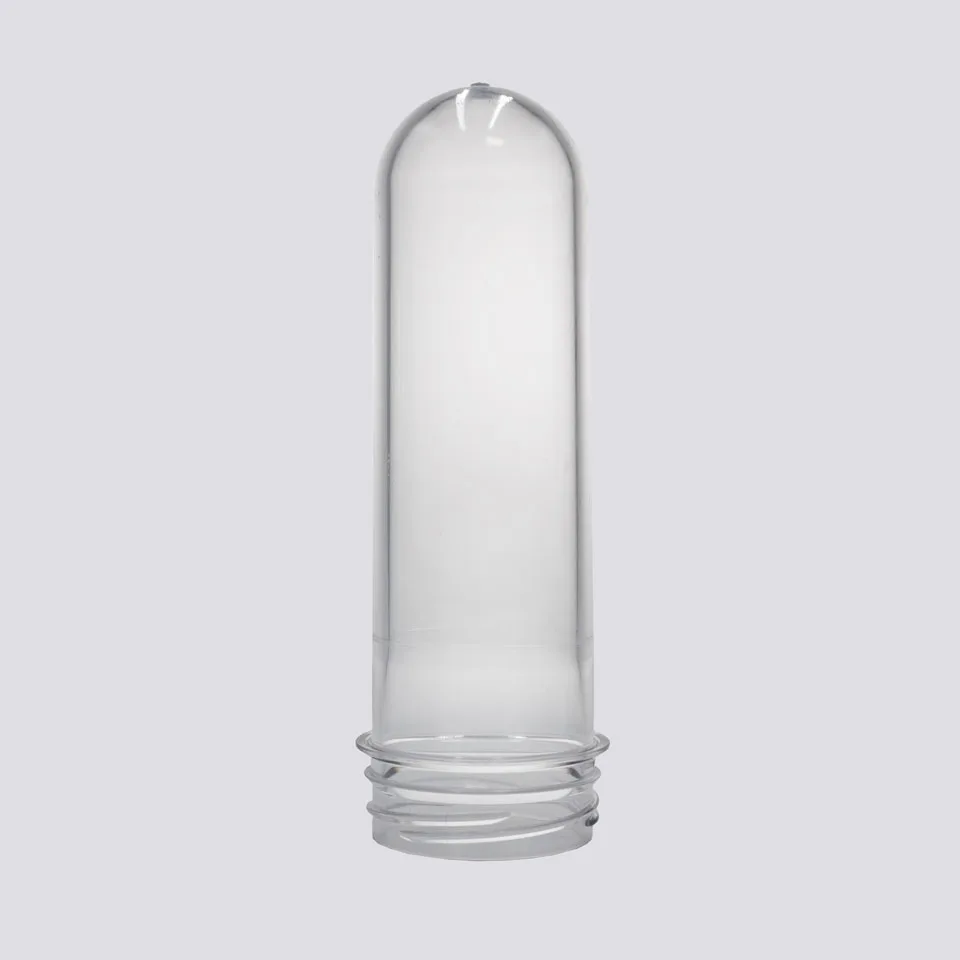

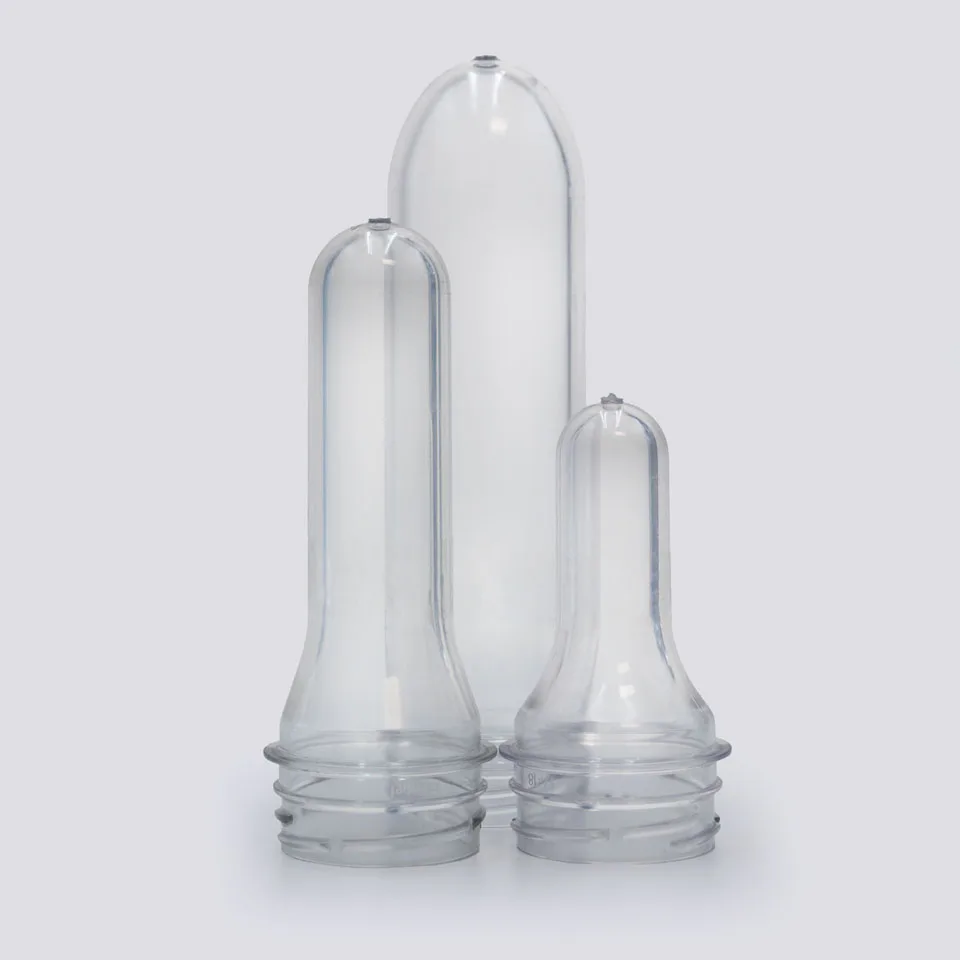

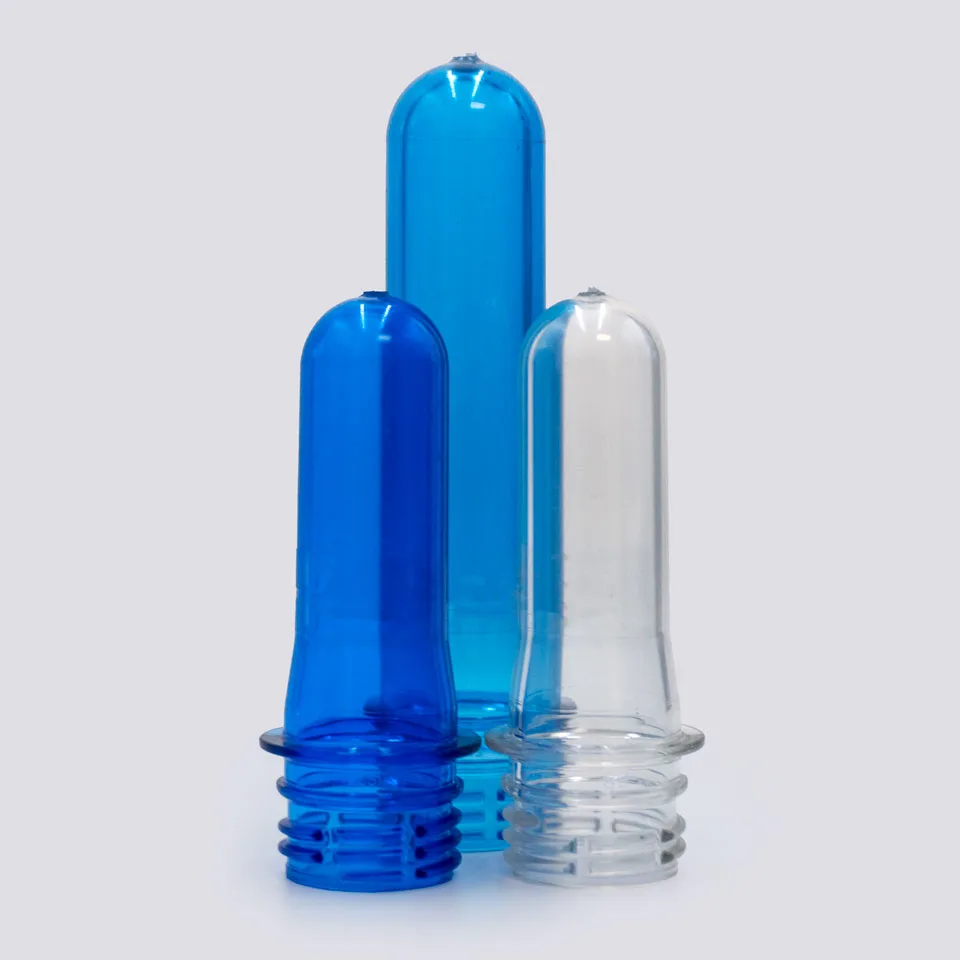

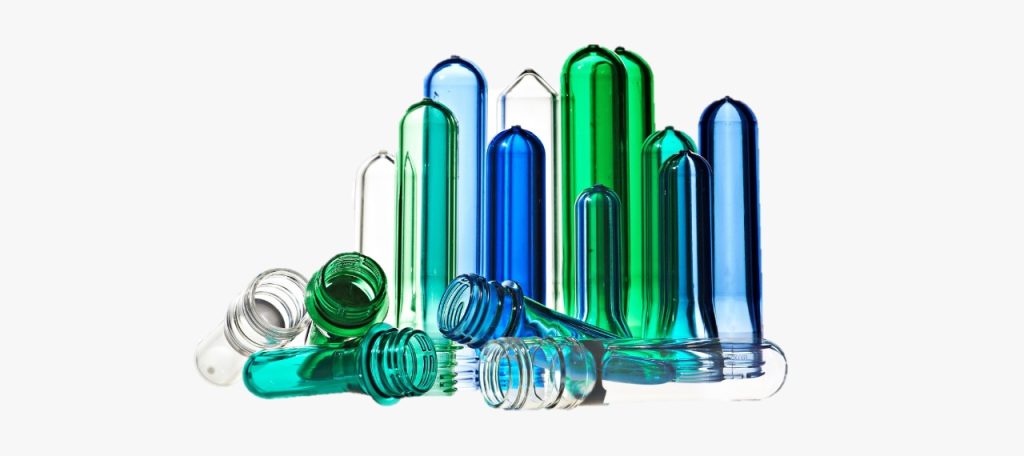

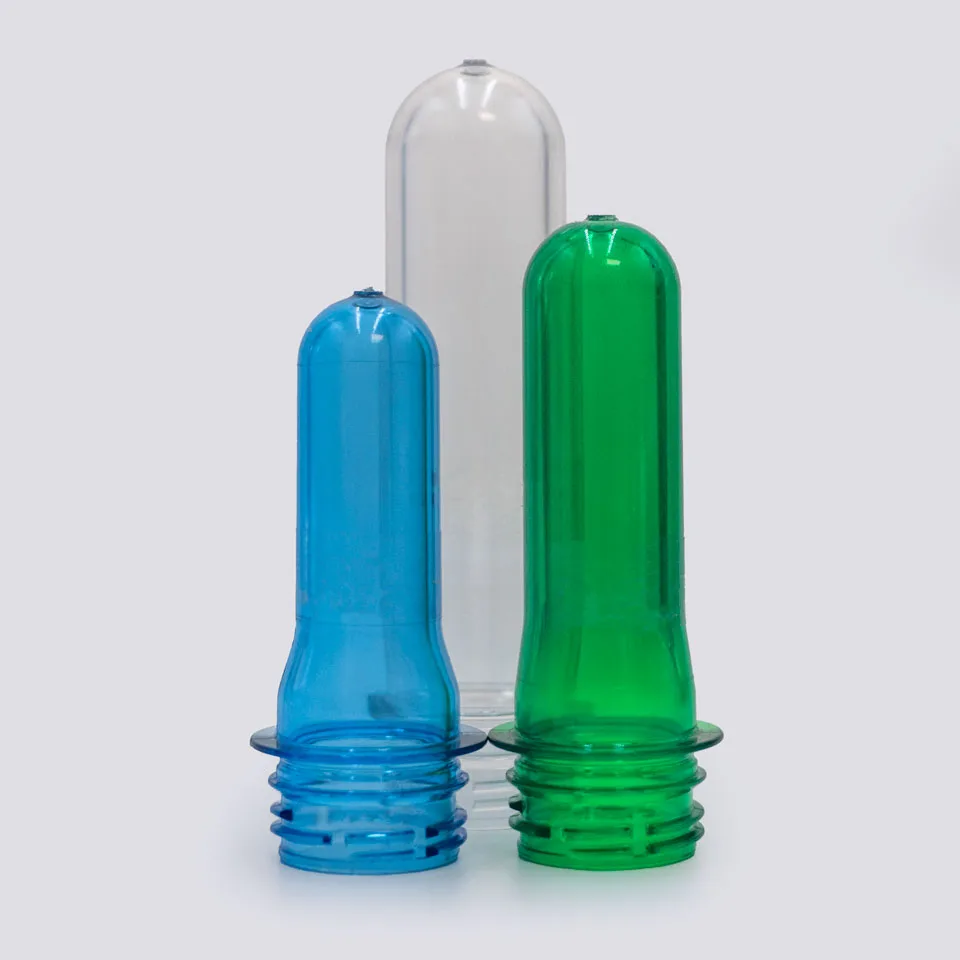

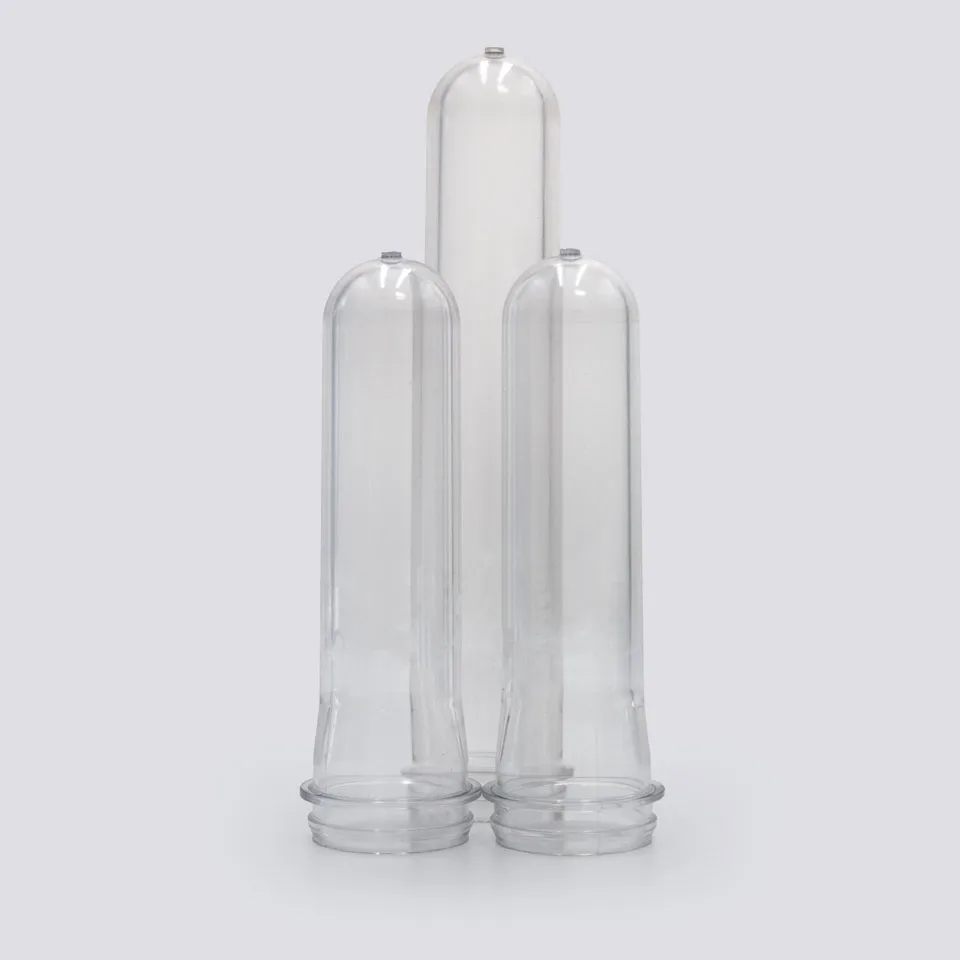

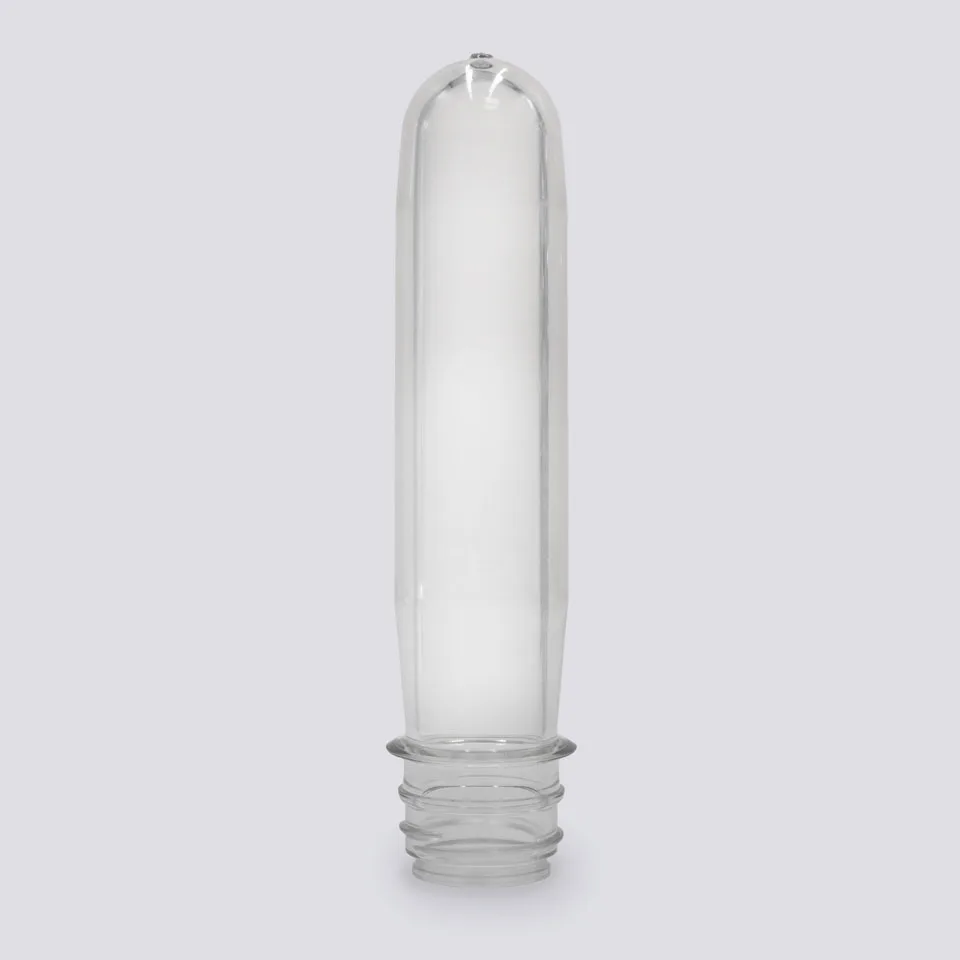

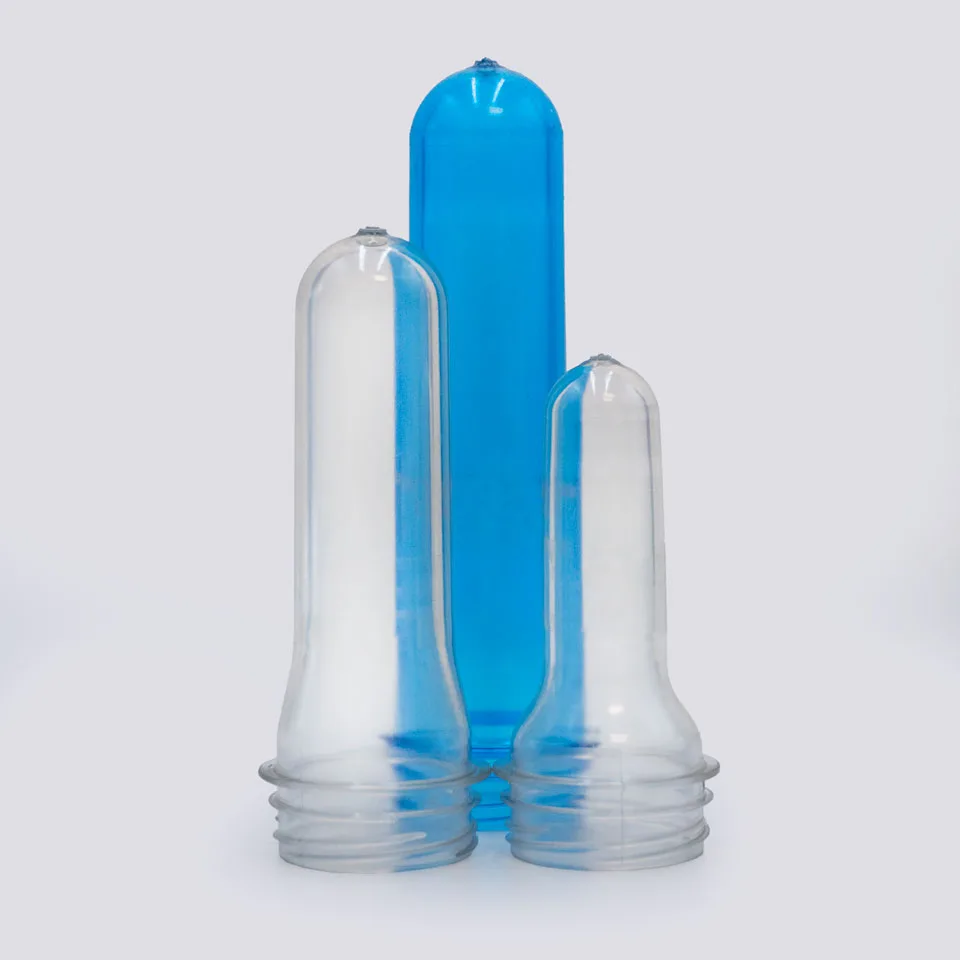

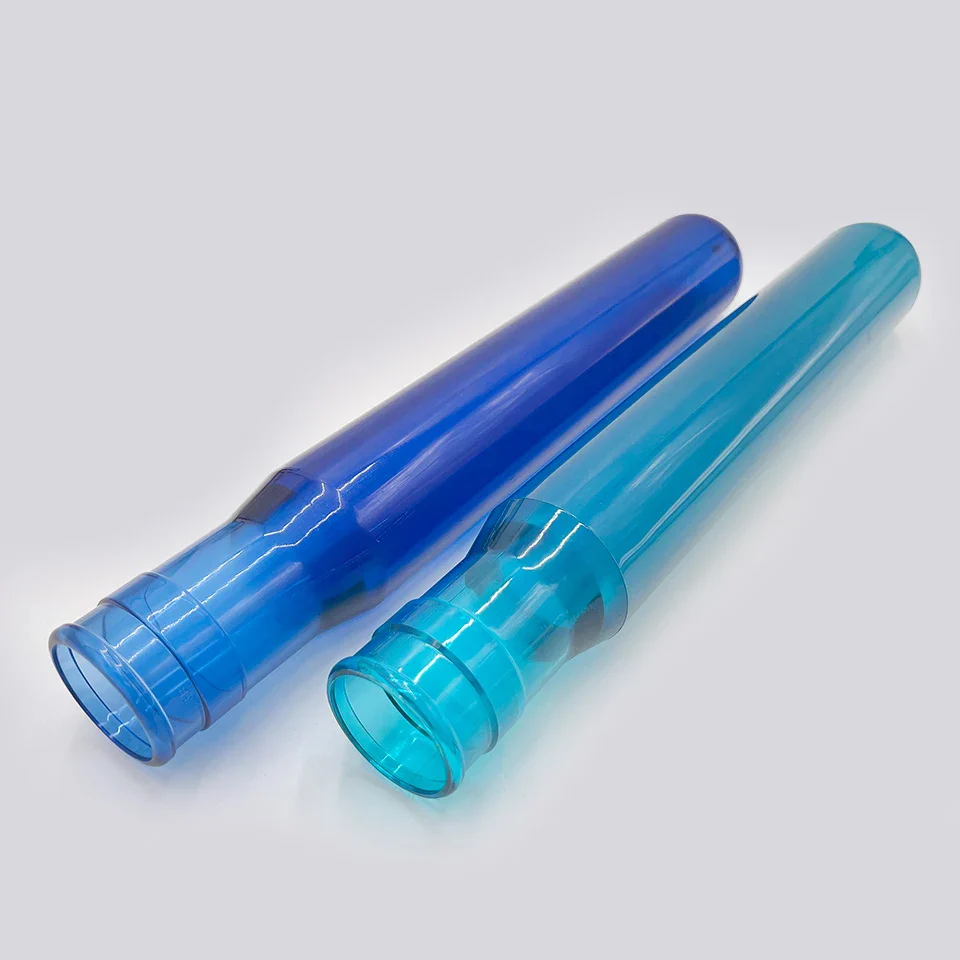

PET blow molding machines are a key part of modern bottle production for the beverage, food, and consumer goods industries. They are designed to support efficient, high-volume manufacturing while maintaining consistent bottle quality. PET (Polyethylene Terephthalate) is a lightweight, durable, and recyclable material. The final bottle’s shape and appearance are determined by the preform, giving manufacturers flexibility to meet different product and branding requirements.
At AMK Plastics, we support PET bottle producers with reliable blow molding solutions focused on performance, efficiency, and long-term production stability.

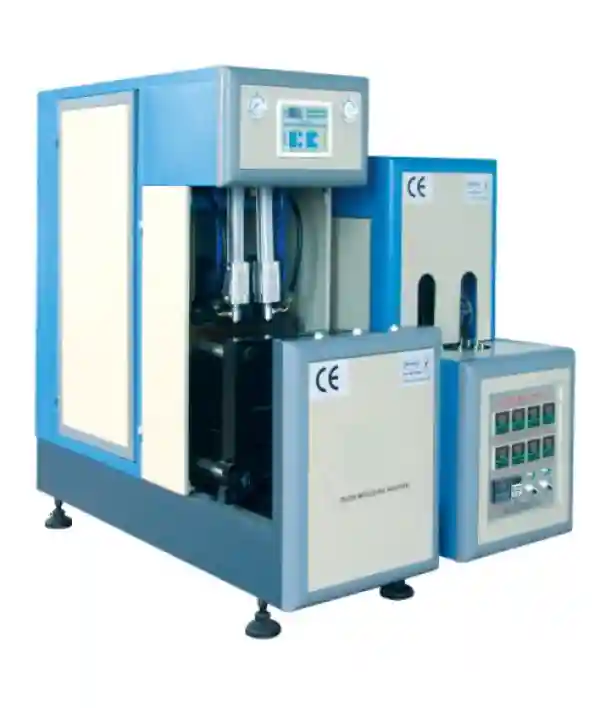

Semi-Automatic PET Blow Molding Machines

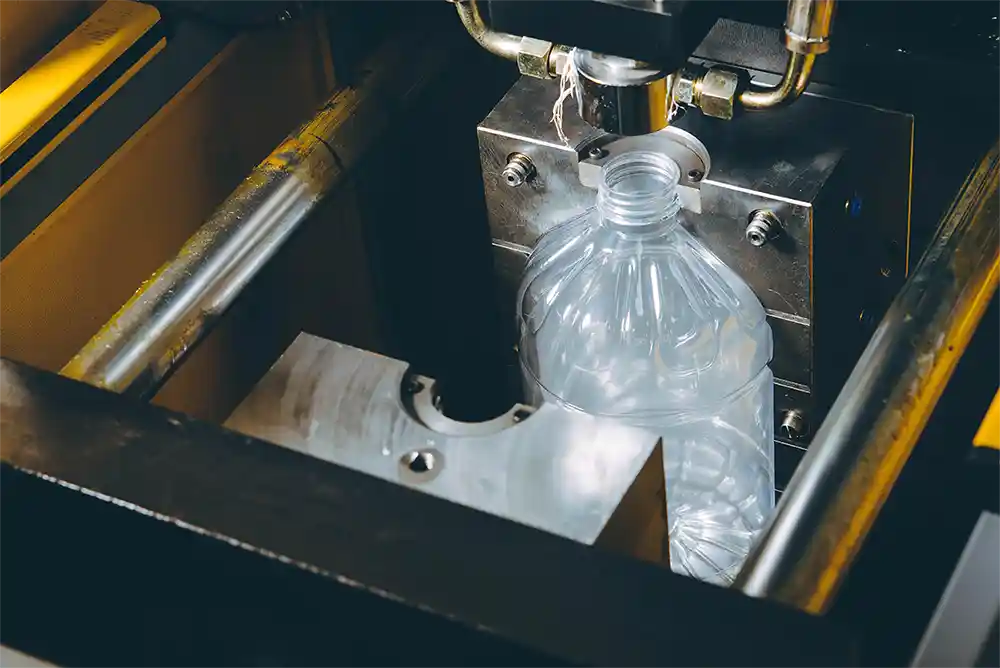

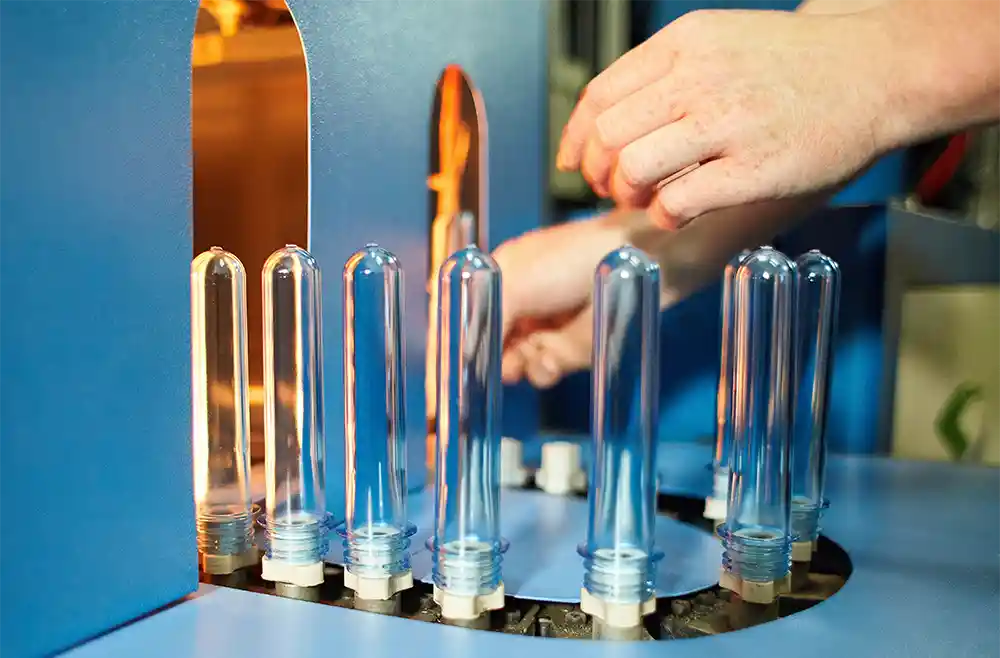

Semi-automatic PET blow molding machines are designed for flexible and controlled bottle production. They combine manual operations with automated blowing, making them a practical solution for small to medium production volumes, pilot runs, and custom bottle projects.
Typical Machine Specifications
| Feature | Specification |
|---|---|
| Material | PET |
| Bottle Size Range | Small to medium bottles (up to ~6L) |
| Producction Capacity | Up to ~900 bottle / hour* |
| Bottle Dimensions | Up to 360 mm height / 180 mm diameter |
| Clamping Force | Single or dual cavity | Mold Configuration | Approx. 180 kN | Air System | High & low pressure air required | Power Supply | 3-phase, multiple voltage options | Safety | Emergency stop & safety interlocks |
*Output may vary depending on bottle size and configuration.
Auxiliary Equipment
PET semi-automatic blow molding machines typically operate with the following auxiliary equipment:
- High-pressure air compressor

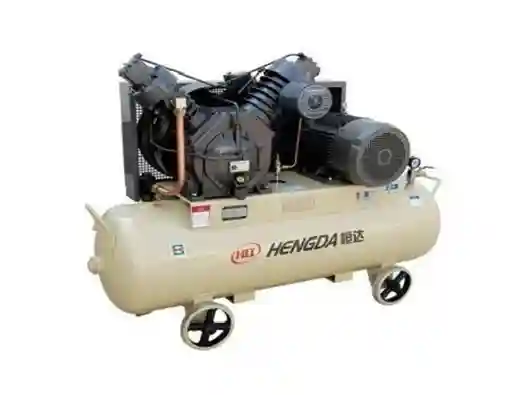

- Low-pressure air compressor

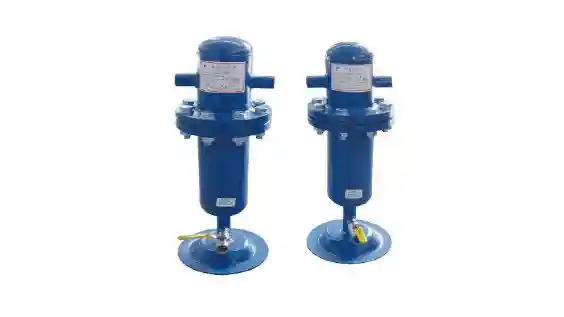

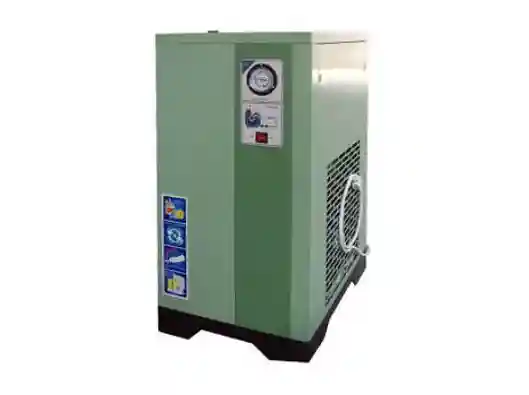

- Air dryer and filtration system
- Chiller (for mold and machine cooling)
- Preform loading and handling accessories
These components work together to ensure stable operation, consistent bottle quality, and production efficiency.

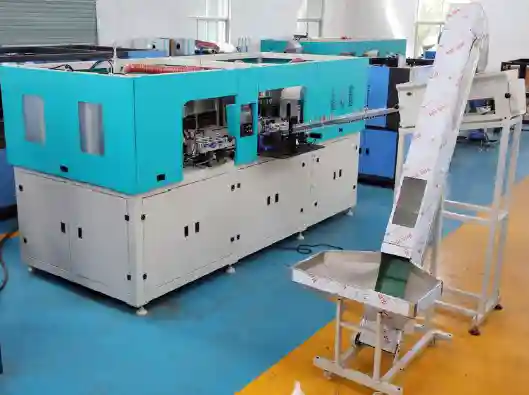

Automatic PET Blow Molding Machines
Automatic PET blow molding machines are designed for continuous, high-volume production. From preform feeding to finished bottle output, the entire process runs in a single automated cycle, helping maximize efficiency and production consistency.
These systems are widely used in operations that require stable output, reduced labor involvement, and reliable performance over long production runs.
Automatic PET Blow Molding Machine - Typical Specifications
| Specification | Description |
|---|---|
| Machine Type | Fully Automatic PET Blow Molding Machine |
| Reference Bottle Size | 500 ml |
| Producction Capacity | Up to 4,000 bottles per hour |
| Operation Mode | Fully automated: preform feeding, heating, blowing and blottle discharge |
| Preform Feeding System | Automatic hopper feeding for continuous operation |
| Heating Method | Rotary preform transfer for even and consistent heating |
| Control System | PLC Control System by delta (Taywan) |
| Pneumatic Components | Industrial – grade components from SMC |
| Conveyor System | Galvanized steel conveyor for stable bottle handling |
| Aplication | High – volume PET bottle production for beverages and consumer packaging |
Auxiliary Equipment
PET Automatic blow molding machines typically operate with the following auxiliary equipment:
- High-pressure air compressor
- Low-pressure air compressor
- Air dryer and filtration system
- Chiller (for mold and machine cooling)
- Preform loading and handling accessories
These components work together to ensure stable operation, consistent bottle quality, and production efficiency.

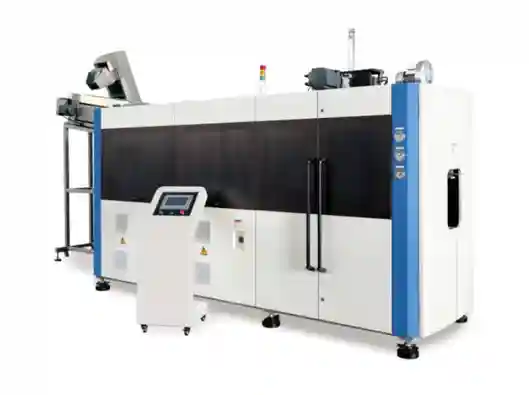

PET Electric Blow Molding Machine
Automatic electric PET blow molding machines are built for high-efficiency, stable, and energy-saving production. The fully electric system ensures precise movements, low noise, and reduced mechanical wear, resulting in consistent bottle quality and reliable operation.

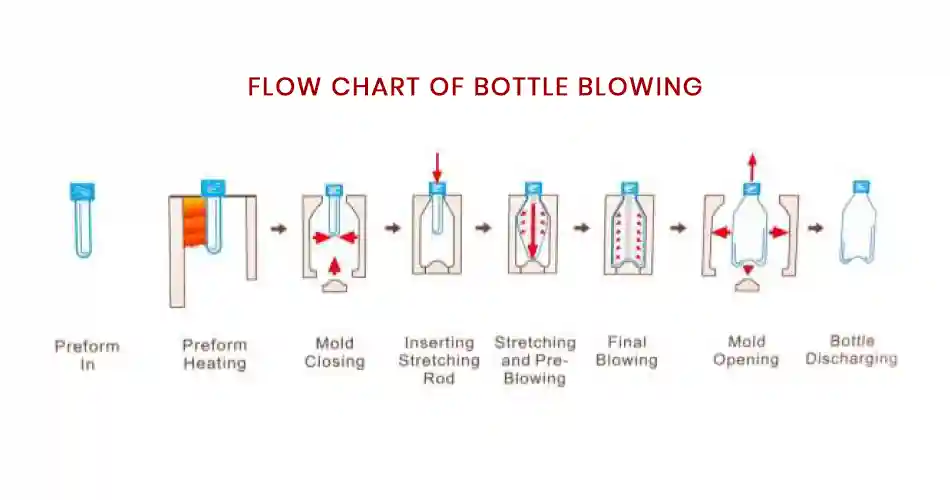

With automatic preform feeding, heating, stretching, and blowing, this machine delivers continuous production with optimized cycle times. Its compact design and advanced control system make it suitable for both new manufacturers and experienced producers looking to improve performance and reduce operating costs.
Typical Specification– PET ELECTRIC BLOW MOLDING MACHINE
| Specification | Description |
|---|---|
| Machine Type | Automatic PET Stretch Blow Molding Machine |
| Applicable bottle material | PT (Polyethylene Terephthalate) |
| Bottle Volume Range | 0.2 L – 2.5 L |
| Number of Cavities | 2 – 6 cavities (optional) |
| Max bottle height | Up to 350 mm |
| Max bottle diameter | Up to 110 mm |
| Max neck diameter | 30 mm |
| Production Capacity | 1500 – 4500 bottles / hour (depending on cavities & bottle size) |
| Heating System | Infrared heating with adjustable zones |
| Heating Power | 40 – 50 kW |
| Clamping System | Servo motor driven |
| Servo motor power | 10 – 11.5 kW |
| Total installed power | 51 – 63 kW |
| Operating air pressure | 7 Bar |
| Blow air pressure | 30 – 35 Bar |
| Air comsuption | 3500 – 4500 L / min |
| Cooling System | Water cooling |
| Cooling water flow rate | 3.7 – 4.8 m3 / h |
| Cooling capacity | 8 – 10 HP |
| Voltage frecuency | 380v – 50Hz (customizable) |
| Control System | PLC – Touch screen (Multi language support) |
| Mold opening stroke | 90 – 125 mm |
| Machine Dimensions (L-W-H) | Approx. 3.3 x 1.3 x 2.6 m / 4.3 x 1.3 x 2.6 m |
| Machine Weight | Approx. 3500 – 4000 kg |
| Suitable Applications | Water bottles, beverage bottles, edible oil bottles, packaging containers |

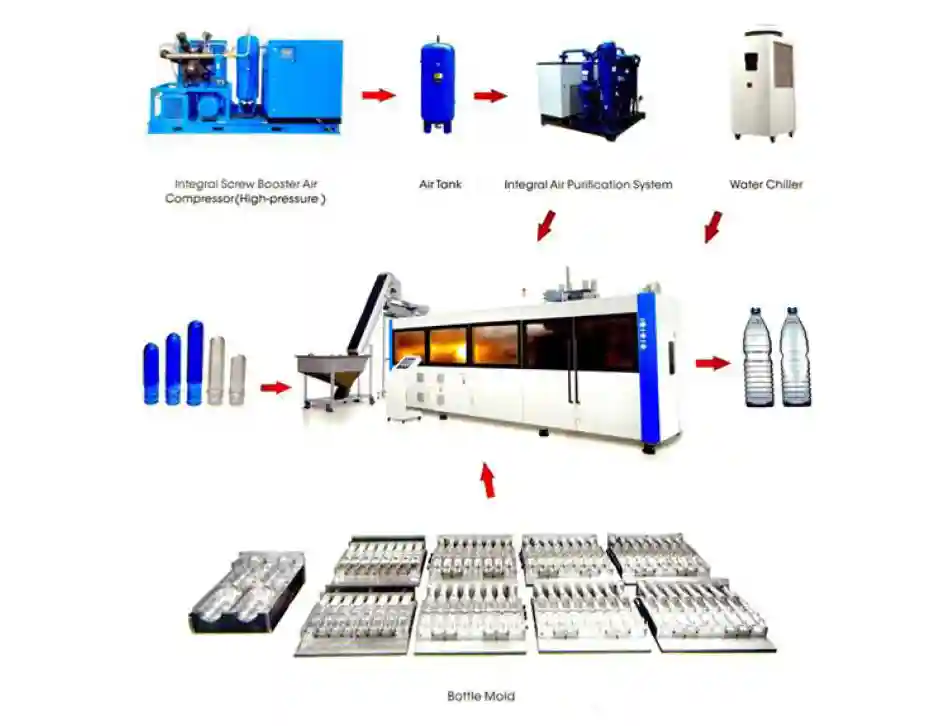

Auxiliary Equipment
PET Automatic blow molding machines typically operate with the following auxiliary equipment:

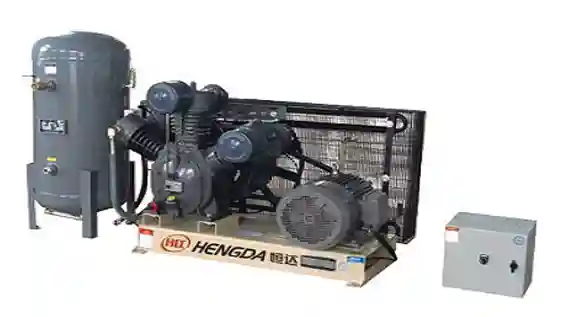

- High-pressure air compressor
- Air Dryer Combination system
- Chiller (for mold and machine cooling)
- Preform loading and handling accessories
These components work together to ensure stable operation, consistent bottle quality, and production efficiency.
PET blow molding machines are a reliable and efficient solution for producing high-quality plastic bottles across a wide range of applications. From semi-automatic to fully automatic electric systems, these machines offer consistent performance, energy efficiency, and scalability to grow with your production needs.
If you’re looking to upgrade your line or start a new project, our team is ready to help you choose the right PET blowing solution. Contact us today to discuss your production goals and receive a tailored recommendation.
